Inspired by camelids: nanobodies are a magnificent molecular velcro Understand article

Camelids are famously robust and useful animals. Surprisingly, their unusual antibodies are just as sturdy and are now revolutionizing medical science.

It is the Year of Camelids!

The year 2024 was designated the United Nations International Year of Camelids. Camelid animals, including alpacas, camels, and llamas, play important roles as a means of transport and a source of milk, meat, and fibre, even in the most extreme environments. Perhaps you have patted the soft wool of an alpaca in the zoo or even taken a swingy ride on a camel on your holidays. But did you know that these long-legged, long-necked, serene-looking hairy creatures have also made important contributions to advance science?

Camelids are the original source of nanobodies

Conventional antibodies are Y-shaped proteins produced by the immune cells (B cells) of mammals like mice, dogs, and humans. The biological function of antibodies is to specifically bind to foreign proteins from microbes, such as viruses, bacteria, and parasites, and thus give protection against infections. However, antibodies are also important research tools and are even used as medicines to treat disease, since it is possible to develop antibodies that specifically bind to any target of choice.

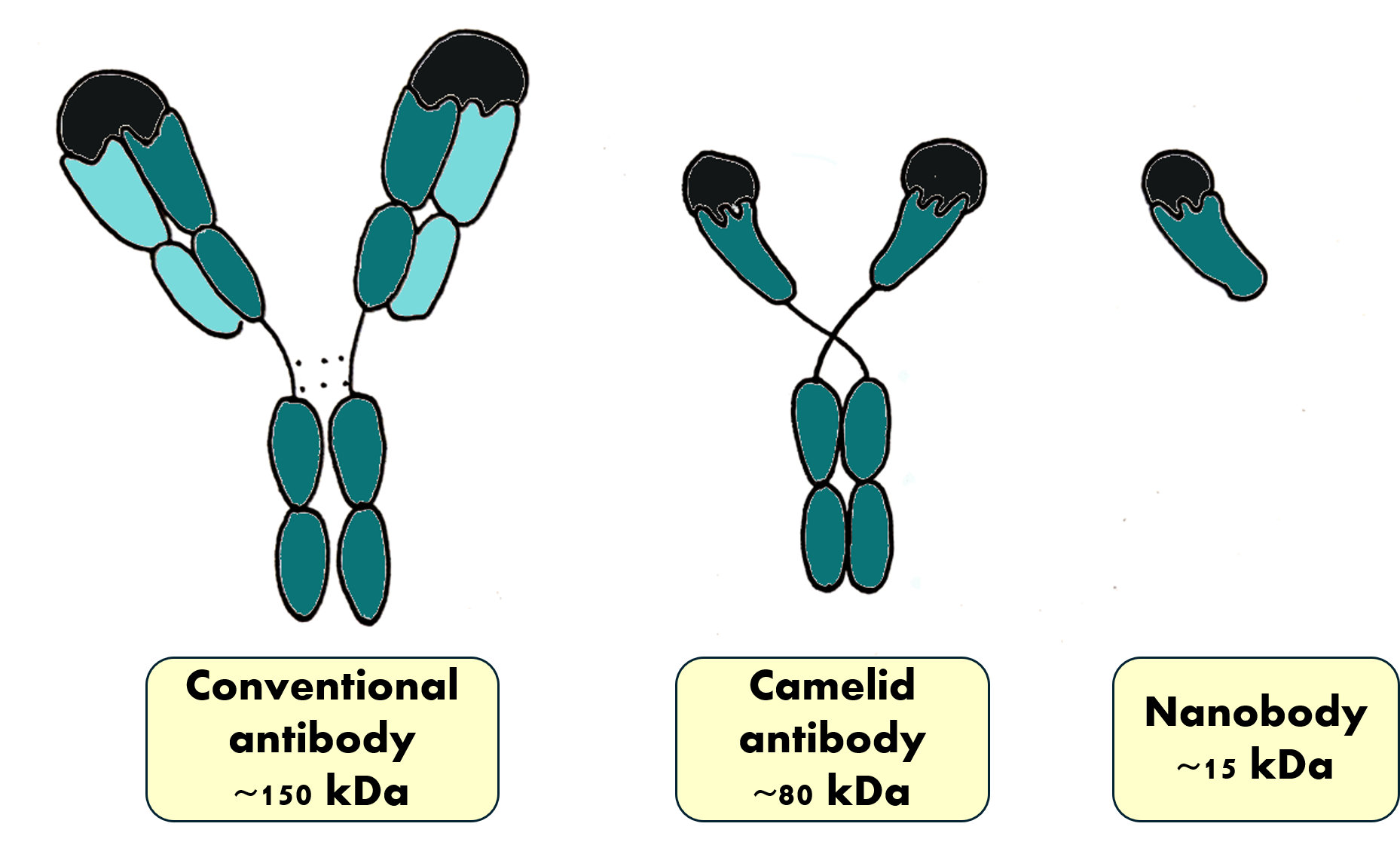

Conventional antibodies are Y-shaped proteins composed of four protein chains: two identical heavy and two identical light chains (Figure 2). These chains are composed of two (light) or four (heavy) globular protein domains (turquoise shapes in Figure 2). The upper parts of the light and heavy chains together form the binding region, which is like a ‘hand’ that can grab the target. Depending on the shape of this hand, a certain antibody can only grab a certain shape. In other words, antibodies engage in specific recognition, uniquely recognizing their target and binding to it like molecular velcro.

Over three decades ago, a group of Belgian researchers surprised the scientific community with their finding that camelids also produce a smaller version of antibodies.^[1] These antibodies are composed of only two heavy chains and have no light chains. Scientists then discovered that they could separately produce the hand domain of these ‘heavy-chain-only’ camelid antibodies to make an even smaller version,^[2] which are known as nanobodies (Figure 2).^[3]

The benefits of nanobodies

These little nanobody hands can bind their target just as strongly and precisely as antibodies. Compared with conventional antibodies, nanobodies are more stable, can function in hot, acidic, or alkaline conditions, and can’t easily be degraded.^[3] Because of their small size (2.5 × 4.0 × 3.0 nm),^[2] nanobodies can easily sneak into places that the much larger antibodies cannot access. One of the ‘fingers’ that nanobodies use for target recognition is sometimes longer than those found in conventional antibodies and is thus able to get into deep pockets on other proteins. Nanobodies are water-soluble, which is an important property in both research and clinical applications. Their ability to be transported in the bloodstream helps their distribution throughout the body. Finally, because they are small, unbound nanobodies are rapidly filtered out of the bloodstream by the kidneys, which reduces the number of potential side-effects. Overall, it seems that nanobodies have much in common with their source: camelids that are able to thrive in deserts where the conditions are some of the harshest on earth! The unique properties of nanobodies make them potentially useful for a variety of applications, both in research and in medicine.

Nanobodies as tools in biomedicine

Advantages of nanobodies

• Specific, tight binding to a target (protein)
• Water solubility
• Small size
• Ability to go deep into tissues
• Stability in extreme conditions
• Linkability to other functional particles: acts like a guiding velcro tape
• Can be produced in the laboratory with the help of microbes because of their simple structure

Potential uses of nanobodies in research

• Aid protein crystallization for structural studies
• As probes to study or image protein locations, activity levels, and interactions with other proteins

Potential uses of nanobodies in medicine

• Detection of cancer cells
• Neutralization of disease-causing viruses, bacteria, proteins
• Targeted delivery of medicines or treatments

Nanobodies can help build protein crystals in research laboratories

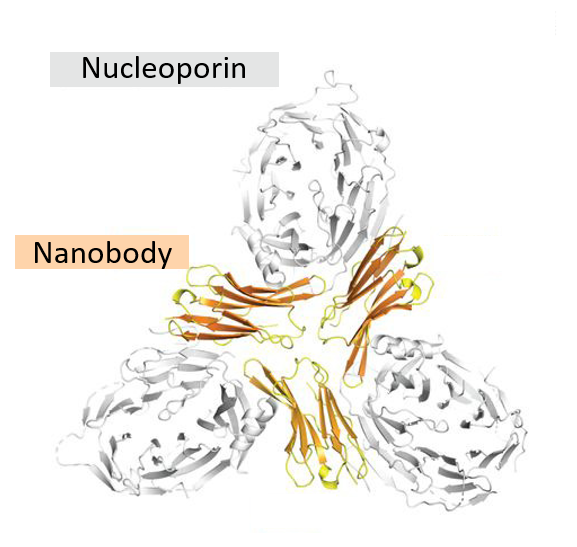

Nanobodies have become useful tools in research. A particularly common use of nanobodies is in the field of structural biology, a branch of research where people investigate the structure of biomolecules like proteins. One very useful method to determine protein structures is called X-ray crystallography, which involves bombarding protein crystals with X-rays. This technique requires regular crystals, in which all the protein molecules need to be packed in an orderly fashion. Growing these crystals is often a challenging task because many proteins are flexible and can take on slightly different forms (aka conformations) and thus fail to form regular crystals. A nanobody can be used as a ‘chaperone’ to lock the target protein into a specific form and help the formation of protein crystals (see Figure 4).^[4]

The first nanobody medicines have entered clinics

The very first nanobody medicine, called Cablivi, was approved in 2018 to treat a rare, life-threatening blood clotting disorder called acquired thrombotic thrombocytopenic purpura (aTTP). In aTTP, a protein called von Willebrandt factor forms large clumps when interacting with blood platelets, which leads to severe blood clotting. The Cablivi nanobody was designed to bind the von Willebrandt factor and block its dangerous interaction with platelets. It is now being used in hospitals to treat this deadly disease.^[5] A newer medicine, Ozoralizumab, used in Japan, binds and blocks an inflammation-causing human protein called tumour necrosis factor alpha (TNFα), which is a real troublemaker in the joints of people with rheumatoid arthritis.^[6] Another nanobody medicine, Envafolimab, binds T cells and activates them to attack cancer cells.^[7]

Nanobodies can be linked to other molecules to guide them to a target

As mentioned, nanobodies have several uses in research and in medical applications. However, the coolest thing about nanobodies is that they can also be easily attached to other molecules. We can think of nanobodies as building blocks that can be attached to functional particles to guide them to specific places in a body or sample. These particles might a) serve as a marker to allow the detection/localization of the target or b) deliver an ‘effector’ function like a medicine (Figure 5).

Radioactive compounds linked to nanobodies can serve both as both detectors and destroyers of cancer cells. Radioactive atoms can be attached to nanobodies so that they can be detected in a living organism, for example, human patients. These radioactive atoms emit radiation that passes easily through tissues and can be detected using positron emission tomography (PET). In nanobody-guided PET imaging with gallium, the irradiation dose is extremely low (0.013 mSv);^[8] in comparison, according to the United Nations Scientific Committee on the Effects of Atomic Radiation (UNSCEAR) 2008 Report^[9], the yearly average dose of irradiation in our everyday lives is 2.4 mSv. Tumour-specific nanobodies linked to the minimally radioactive compound gallium 68 were found to be useful for imaging colorectal tumours and cancer cells that have spread to other parts of the body in patients,^[7] which is an example of a modified nanobody serving as a detector. At higher doses, radiation can also be used to kill cancer cells, so cancer-cell-specific nanobodies linked to radioactive atoms can directly deliver radiation to the tumour, leading to its destruction. In one study, radioactive lutetium 177 atoms, linked to a breast-cancer-specific nanobody, delivered a tumour-targeted toxic irradiation dose of 900 mSv.^[10] By targeting the radiation to the tumour, we can minimize damage to healthy cells and thus reduce side effects.

The new era of nanobodies

The nanobody trend, which our friends the camelids started a couple of decades ago, has advanced in gigantic leaps in recent years. It is now possible to develop nanobodies in any molecular biology laboratory without the need for a herd of llamas! Nanobodies can now be created fully synthetically, with the help of simple microorganisms, namely bacteria, yeast cells, and viruses. When the COVID pandemic hit, it took colleagues at European Molecular Biology Laboratory (EMBL) less than three weeks to develop synthetic nanobodies that efficiently bound the coronavirus.^[11] However, identifying efficient nanobodies is just the first step; to make it to the clinics, nanobody-based medicines, just like any other medical product, must go through vigorous pre-clinical animal testing and clinical studies in human patients to ensure their safety and efficacy. There are now even efforts to identify nanobody binders by using artificial intelligence,^[12] an approach that may further streamline the production of these multifunctional proteins. Unfortunately, synthetic nanobodies often don’t perform as well as those derived from immunized camelids and need further adjustment for optimal activity. There is still much to learn!

Overall, nanobodies are versatile tools that are easily modified and connected to other molecules, and modified nanobodies can help researchers and patients in many ways. Since their discovery, they have been an inspiration for researchers around the world to develop innovative solutions. Maybe one day YOU will come up with a research or treatment idea for which a nanobody, this magnificent molecular velcro, will be exactly what you need.
