Building a seismograph from scrap Teach article

Did you know that you can use old hi-fi speakers to detect earthquakes? And also carry out some simple earthquake experiments in the classroom? Here’s how.

Image courtesy of Jeffreyw /
iStockphoto

Earthquakes occur around the world all the time. In 2011, the earthquakes that caused the Fukushima disaster in Japan, killed thousands in Turkey and devastated Christchurch, New Zealand, made the headlines. But did you know that 2011 also saw earthquakes in Finland, Belgium and the Czech Republic?

Some earthquakes may be so slight as to be practically unnoticeable, but they can still be recorded. Each tremor produces different types of vibration, or seismic waves, which travel through Earth’s interior with different velocities. These waves can be detected and recorded by instruments called seismographs, which are often sited at great distances from the earthquake. By measuring the time that the seismic waves take to arrive at seismographs, as well as recording the amplitude and duration of the waves, we can calculate the magnitude of the earthquake and determine its epicentre.

Monitoring local earthquakes

Earthquakes are a daily occurrence in Greece (figure 1), sitting as it does at the boundary of two tectonic plates. The district of Messinia, where our school is located, has a history of major earthquakes. In 1886, a severe earthquake of magnitude 7.5 on the Richter scale struck Filiatraw1 (figure 2). A century later, Kalamata was hit by another strong earthquakew2, this time of magnitude 6.0. Within the next 100 years, it is predicted that Sparta will be struck by an earthquakew3 of at least magnitude 7.0.

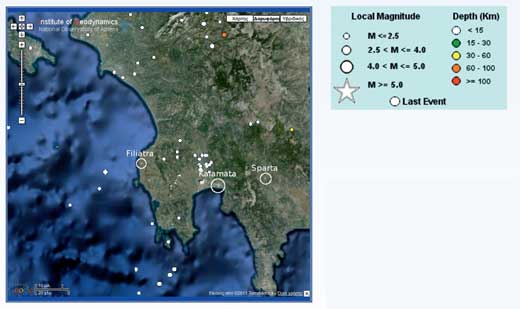

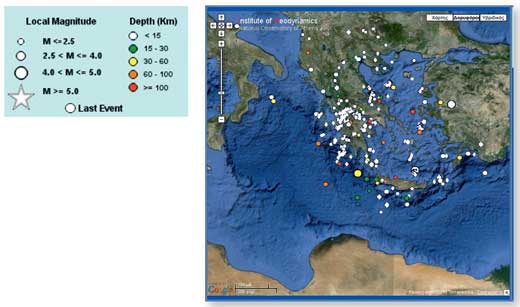

Figure 1: Earthquakes in Greece during the first week of November 2011. Due to its position at the boundary of the African and European tectonic plates, several earthquakes occur in Greece every day
Image courtesy of Panteleimon Bazanos; data source: the automated alert system of the Institute of Geodynamics at the National Observatory of Athens

Figure 2: The 1886 earthquake ruined Filiatra, while the 1986 earthquake damaged Kalamata. Sparta is likely to be another victim within the next 100 years
Image courtesy of Panteleimon Bazanos; data source: the automated alert system of the Institute of Geodynamics at the National Observatory of Athens
Click on image to enlarge
Image courtesy of Nicola Graf

To encourage my students to learn about earthquakes, I acquired and set up a commercial, educational seismograph in our school (figures 3 and 4), the General Lyceum of Filiatra. The seismograph is based on an array of three geophones – devices that respond to the seismic waves and convert them to electrical signals. Each of the three geophones monitors waves in the up-down, east-west or north-south directions. The three signals are then processed by computer, allowing the magnitude of the earthquake and the distance from the epicentre to be calculated (figure 3).

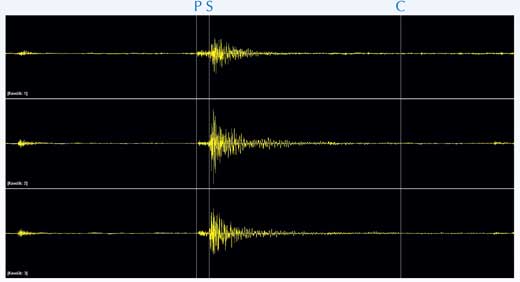

Figure 3: A three-channel seismogram from our commercial seismograph, showing the start times of the primary (P) and secondary (S) waves and the vibration end time (C). Primary waves are compressional longitudinal wavesw4 that are the first to arrive at the seismograph. They can travel through solids or fluids – in air they take the form of sound waves, travelling therefore at the speed of sound (340 m/s). In water they travel at about 1450 m/s and in granite at about 5000 m/s. Secondary waves are shear transverse waves, arriving at the seismograph after the primary waves and displacing the ground in a direction perpendicular to the direction of propagation. They do not travel through liquids or gases, travelling through solids at speeds of about 60% of those of primary waves. The epicentre distance (in km) and the earthquake magnitude (measured on the Richter scale) are calculated according to the formulae
distance = p1·(ts – tp)
and
magnitude = p2·log10 (tc – tp) + p3·distance – p4
where p1, p2, p3, p4 are constants that depend on the types of rock that the earthquake passed through. Default values are p1 = 7.6, p2 = 2.31, p3 = 0.0012, p4 = 1.0. Three time measurements (in seconds) are needed: the time that P waves arrive (tp), the time that S waves arrive (ts) and the time that vibrations end (tc)

Image courtesy of Panteleimon Bazanos; image source: Seismic Logger, Helicorder and Dataviewer software, Seismology Laboratory of the University of Patras

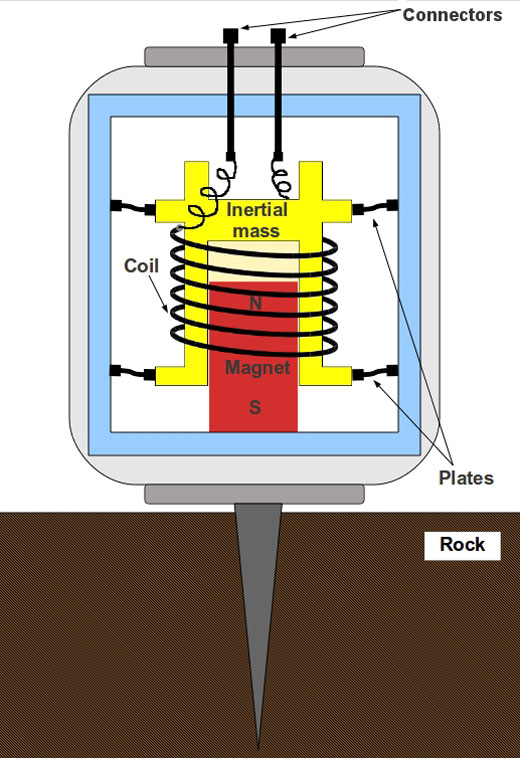

Figure 4: How a geophone
works. When the ground
vibrates, the mass with the
coil attached to it moves
relative to the magnet. The
potential difference produced
in the connectors depends on
the way the ground vibrates.
Click on image to enlarge.

Image courtesy of Panteleimon
Bazanos

Building a seismograph

I also wanted to encourage the students to think about the technology that is used to detect and measure earthquakes and to understand what each component does, rather than viewing a seismograph as a ‘black box’. To this end, we build our own seismograph, with which we can detect local earthquakes – up to 100-200 km away, depending on their magnitude.

At the heart of any seismograph are the geophones. They convert the ground vibrations into electrical signals using a coil that moves relative to a magnet, producing an electrical voltage at the end of the coil (Faraday’s law; figure 4). To build our seismograph, we used everyday technology as the geophone: a loudspeaker. Normally, loudspeakers operate by converting an electrical signal into the relative movement of a coil and a magnet, which causes the cone to move in and out, thus generating vibrations: sound waves (figure 5). By making them operate the other way round – turning vibrations into electrical signals – they can be made to function as geophones.

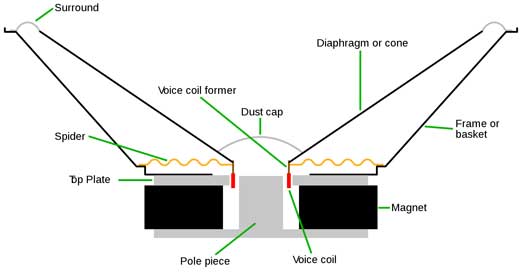

Figure 5: How a loudspeaker works. As the function of loudspeakers is based on the relative movement of coil and magnet, we can use them to detect ground vibrations. These vibrations move the coil relative to the magnet, producing a potential difference between the coil’s connectors. This electrical signal is recorded by the computer via the sound card, in the same way as input from a microphone would bew5
Image courtesy of Iain Fergusson; image source: Wikimedia Commons

To make our geophone, we used a ‘woofer’ – a speaker for low-pitched sounds – because woofers are designed to work well for low frequencies, and seismic waves are of course low-frequency vibrations. To minimise interference from sound vibrations, we removed the cone of the loudspeaker.

Figure 6: Our homemade
geophone

Image courtesy of Panteleimon
Bazanos

To complete our geophone (figure 6), we also used a weight, a spring and the lid of a spray can. The weight serves to increase the inertia, as the loudspeaker coil itself is very light. Placing a weight directly onto the coil would damage it, so we used the spring to hold the weight over the coil, allowing it to oscillate. The lid protected the coil. We then plugged our woofer geophone into the sound-card port of a computer, and recorded the signals using sound-editing software, creating a working seismograph.

Detailed instructions for building our seismograph can be downloaded from the Science in School websitew6.

Now it’s your turn

If you are interested in monitoring and investigating seismic activity in the classroom, you could:

  1. Monitor and analyse data from existing seismographic stationsw7,w8.
  2. Use a commercial, educational seismograph.
  3. Construct your own seismograph, using the downloadable instructions beloww6.
  4. Carry out some simple experiments to simulate and investigate the physics of earthquakes.

To record earthquakes with either a commercial or a homemade seismograph, you will need to be relatively close to their epicentres. Our homemade seismograph detected earthquakes up to 100-200 km awayw9, depending on magnitude. With our commercial seismographw10, we detected earthquakes of 4.0 on the Richter scale from 500 km away.

Options 1 and 4 have the advantage of being feasible even in regions with very little seismic activity.

Looking for earthquakes

Earthquake damage to a
pavement

Image courtesy of Tubbi; image
source: Wikimedia Commons

The coil of the homemade seismograph is very sensitive, so the geophone must be handled with great care. For the best measurements, set up the seismograph somewhere quiet and free from vibrations, perhaps in the school cellar. However, to encourage student participation, I set mine up in the classroom.

Once you have set up your seismograph, let it record continuously for one or two days, then save the data in a file. Before you can search for earthquakes in the data, you will need to do some processing. The exact details of the processing will depend on the software you use, but it should be fairly straightforward.

  1. Remove any DC offset, to remove the contribution of any DC current to the signal.
  2. Amplify the low frequencies (below 100 Hz). This is the range in which you will detect earthquakes.
  3. Remove background ‘noise’ (thermal noise, electronic noise, etc.) to make the signal clearer.
  4. After that, you can search the data for patterns that indicate an earthquake.

Not all signals recorded by seismographs are earthquakes. Other, more local sources, including traffic, wind, explosions and opening and closing doors, can cause confusion. Earthquakes often have a characteristic pattern: a small waveform followed by a large one (see figure 3). Because this is not always the case, however, you and your students may sometimes be unsure if what you have detected really is an earthquake. The only way to be certain is to do what professional seismologists do and compare your data with the recordings made at other seismographic stationsw7,w8.

When you are confident that you have detected an earthquake, you can calculate its magnitude (on the Richter scale) and your distance (in km) from the epicentre (figure 7). For that, you need only three measurements: the arrival time (in seconds) of the P and S waves, and the time at which the vibrations stop (see figure 3). For more details, download the instructions from the Science in School websitew6.

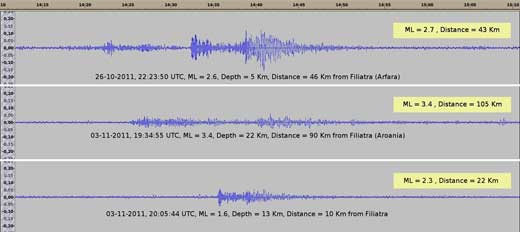

Figure 7: Earthquake signals recorded with our homemade seismograph. The values in the yellow boxes were calculated from the homemade seismograph data, while the values under the signals are from the reports of the Institute of Geodynamics of National Observatory of Athens.
ML stands for local magnitude (ML) on the Richter scale

Image courtesy of Panteleimon Bazanos

Vibration experiments using computer speakers

Figure 8: A pair of computer
speakers and cable modified
for use in the experiments.
The plugs on the cable have
been replaced by crocodile
clips, and the cones have
been removed from the
speakers to reduce
interference from sounds
travelling through the air

Image courtesy of Panteleimon
Bazanos

I also devised some experiments to simulate some aspects of earthquakes and the signals they produce – for example, how the energy of the earthquake decreases as it passes through different materials.

To do this, we used speakers and a computer equipped with a sound card and audio processing software, as before. But in place of geophones you can use old computer speakers (again with the cone removed), which can be moved around as needed in the experiments (figure 8). You can use 100W / 8Ω woofers, as in the construction of our seismograph, or 3W / 8Ω computer speakers, plus the sound-editing software Audacityw11. For more details, see steps 1, 8 and 9 in the downloadable instructionsw6.

The experiments involved dropping balls from different heights (representing different energies) at different distances from the detectors (the speakers), onto surfaces made from various solid materials.

When the ball strikes the hard surface, it produces vibrations that travel through the solid – just as an earthquake produces waves that travel through Earth.

Experiment 1: The power of a shake

This activity demonstrates the relationship between earthquake power and ground movement. We caused vibrations on a piece of marble (or wood, plastic or even the ground) by dropping a mouse ball (from a computer mouse) from different heights, producing different ground-shaking powers. The amplitude of the signal depends on the power of the shake.

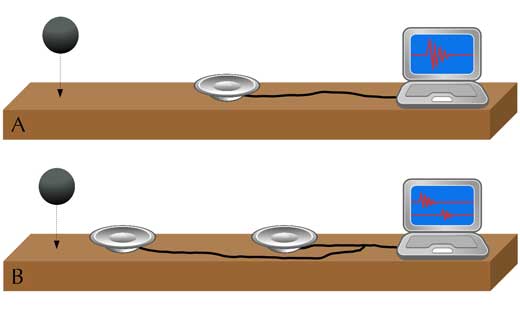

Figure 9: Two set-ups for the experiments, using one (A) or two (B) speakers
Image courtesy of Panteleimon Bazanos
  1. Set up the equipment as shown in figure 9A.
  2. Drop the ball from different heights, recording the signal amplitude (figure 10) in table 1. It is not important exactly what distance from the speaker you drop the ball, but make sure you drop it onto the same spot each time.

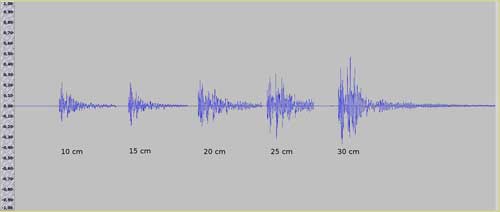

Figure 10: The signals recorded in experiment 1. The signals were amplified by a factor of 10
Image courtesy of Panteleimon Bazanos
Table 1: Enter your results for experiment 1
Height (cm) 10 15 20 25 30
Signal amplitude
  1. Plot a graph of amplitude against height.
  2. Discuss the graph. Your students should conclude that the more energy is released, the more the ground vibrates.

Experiment 2: Energy attenuation

This activity demonstrates the energy attenuation (decrease) as seismic waves travel through Earth’s crust. We produced vibrations by dropping a 4 kg shot put (metal ball) on the ground from the same height but at different distances from the woofer geophone or loudspeaker. As the waves travel, they lose energy and the ground vibrates less. This is reflected in the amplitude of the signals.

  1. Set up the equipment as shown in figure 9A.
  2. Mark 5 distances of 1 m intervals from the woofer geophone or loudspeaker along the ground.
  3. Let the ball fall from the same height (e.g. 1 m) onto the ground at each marked distance, recording the results (figure 11) in table 2.

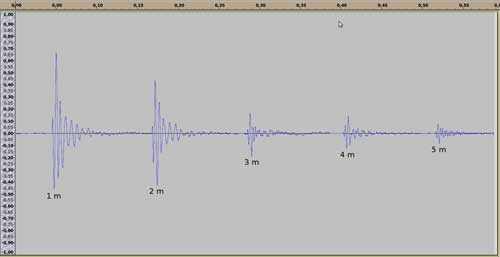

Figure 11: The signals recorded in experiment 2. The signals were amplified by a factor of 4
Image courtesy of Panteleimon Bazanos
Table 2: Enter your results for experiment 2
Distance from geophone (m) 1 2 3 4 5
Signal amplitude
  1. Plot a graph of amplitude against distance.
  2. Discuss the graph. Your students should conclude that the farther away the ‘earthquake’ is, the less the ground vibrates.

Experiment 3: Wave velocity in different media

In this activity, we investigate wave velocities in different media. As seismic waves travel through Earth, their velocity differs depending on the composition of the rocks they are travelling through. This gives seismologists and geologists important information about Earth’s interior. Here, we investigate how fast vibrations travel through different solid materials.

We used wood, iron and marble as the materials, but any hard solid can be used. Just make sure you have the various materials available in a size suitable for the activity.

  1. Set up the equipment as shown in figure 9B. We used a distance (x) of 80 cm between the speakers.
  2. Drop a mouse ball (or other suitable object) onto the first solid material, close to one speaker, but not between the speakers. Record the times for the signal to reach each speaker (t1, t2).
  3. Repeat with the other materials, entering each result in table 3. Work out the wave velocities using the formula: v = x / (t2-t1).
Table 3: Enter your results for experiment 3
Material t1 t2 t2-t1 x  v = x / (t2-t1)
Wood
Iron
Marble
  1. Discuss the results. In which material do the waves travel fastest?
